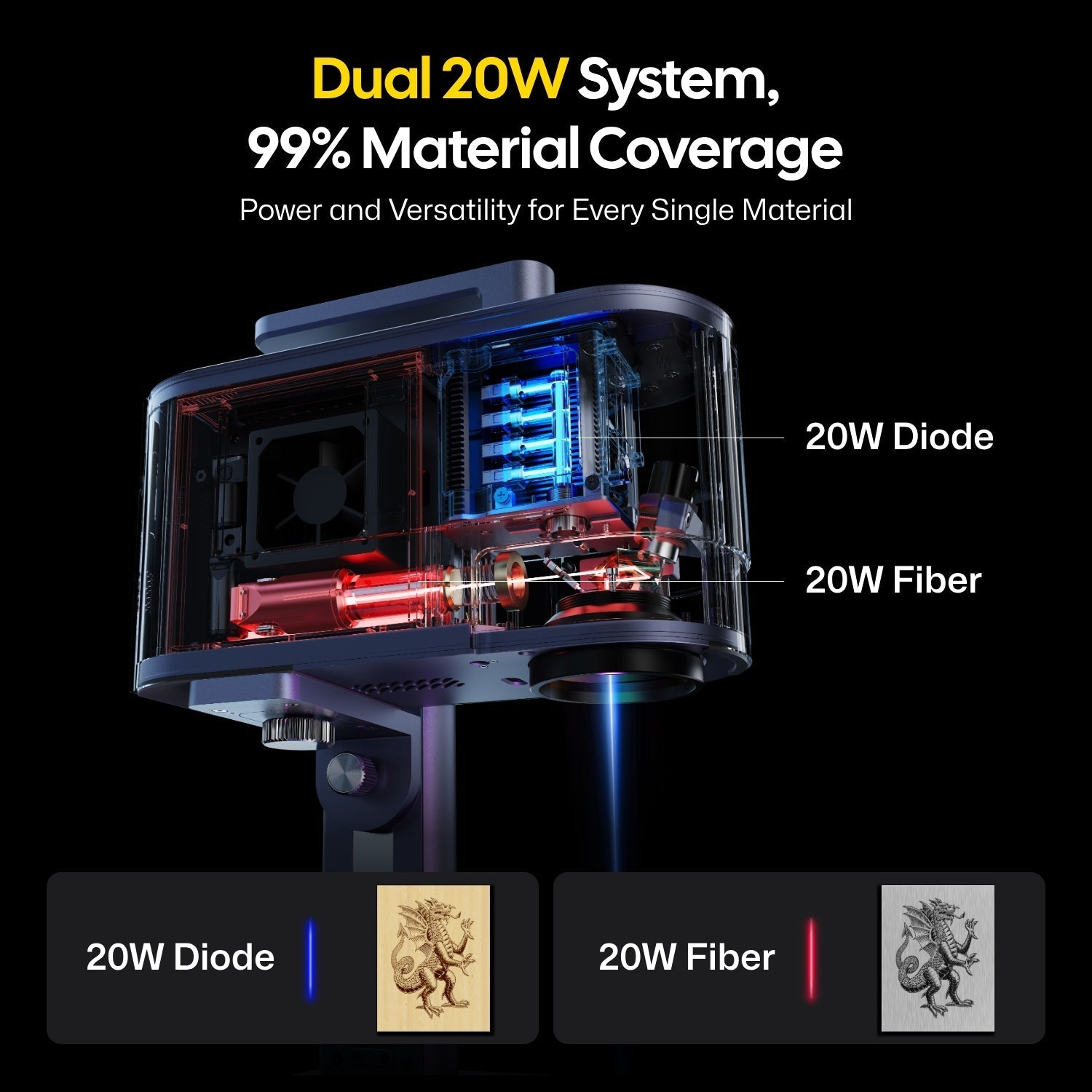

LaserPecker LP5 combines a 20W 1064 nm fiber laser and a 20W 450 nm blue diode laser in one desktop machine. The useful question is not which source is stronger overall. It is which source matches the material, finish and result you need.
This guide separates the two LP5 workflows and maps the six current bundles to practical jobs.
Quick answer: choose the LP5 laser by material
| Material or job | Start with | Typical use |
|---|---|---|
| Stainless steel, aluminum, brass and other supported metals | 20W fiber | Marking, deep engraving, relief and tested thin-metal cutting |
| Jewelry, tools and metal business gifts | 20W fiber | Fine text, logos, color effects and permanent personalization |
| Wood, leather and paper | 20W diode | Engraving, signs, gifts and suitable cutting work |
| Black acrylic | 20W diode | Engraving and tested cutting |
| Glass, rock and rubber | 20W diode | Engraving after testing the exact surface and setup |
| Unknown material or coating | Do not guess | Confirm composition and laser safety before processing |
Material composition, color, coating, focus, settings and pass count all affect the result. Run a small test on the actual blank before production.
Use the 20W fiber laser for metal-focused work
The fiber source is the LP5 advantage for direct metal processing. LaserPecker lists stainless steel, aluminum, brass, silver, platinum and titanium among its supported materials, together with compatible plastics. Typical jobs include deep engraving, 3D relief, high-contrast marking, color effects and tested thin-metal cutting.
Cutting depth is not a fixed promise. Alloy, thickness, focus and pass count matter, so a manufacturer example should be treated as a starting point rather than a guaranteed production setting.
Use the 20W diode laser for wood, leather and acrylic
The blue diode source is the practical starting point for non-metal work such as wood signs, leather goods, paper packaging and black acrylic. LaserPecker also lists glass, rock and rubber, but surface preparation and material formulation can change the outcome.
Do not process PVC, vinyl or an unidentified material. Use suitable extraction or ventilation, eye protection, supervision and an enclosure where the job or venue requires it.
Choose an LP5 bundle by workflow
| Bundle | Best starting point | Included workflow additions |
|---|---|---|
| Standard | Core flat dual-laser work | LP5 machine and the current start-up package |
| Portable | Approved off-site jobs | PowerPack Plus for portable power |
| Deluxe | Enclosed rotary and extended work | Rotary Extension, Slide Extension, Air Purifier and LP5 Safety Enclosure |
| Business | Cylindrical and longer batch layouts | Rotary Extension and Slide Extension |
| Safety | Enclosed indoor setup with local filtration | LP5 Safety Enclosure and Air Purifier |
| All-in-One | Rotary, long-format and filtered production | Rotary Extension, Slide Extension and Air Purifier |
Every bundle uses the same 20W fiber + 20W diode LP5 laser system. Accessories are included only when listed for the selected package. Local filtration does not replace ventilation, material testing or active supervision.
Working area and software
- Working area: 120 × 160 mm ellipse or 100 × 100 mm square.
- With Slide Extension: up to 160 × 300 mm.
- Maximum listed working speed: up to 10,000 mm/s.
- Software: LaserPecker Design Space on mobile and desktop, with LightBurn compatibility.
LP5 FAQ
Can LP5 engrave and cut metal?
Yes. Its 20W fiber source supports metal marking, deep engraving, relief work and tested thin-metal cutting. Test the exact alloy, finish and thickness before production.
Does every LP5 package include the safety enclosure?
No. Select a package that explicitly lists the LP5 Safety Enclosure when enclosed operation is required.
Is LP5 a better fit than LP4 for metal work?
LP5 uses a 20W fiber source, while LP4 uses a 2W infrared source. LP5 is the stronger choice for deep metal engraving, relief and faster commercial production; LP4 remains the lighter portable option for marking and mixed-material personalization.
Compare current LP5 bundles
See current LaserPecker LP5 bundles, pricing, package contents and availability at DIYSOSO.
Sources and further reading
- LaserPecker U.S. LP5 product page — manufacturer specifications, supported materials and current package information.
- OSHA laser-hazards technical manual — general guidance on laser hazards and ventilation considerations.
Manufacturer sources support specifications and package information. Results still depend on the tested material and operating conditions.
